Arkimede Adjustable Paving Pedestal

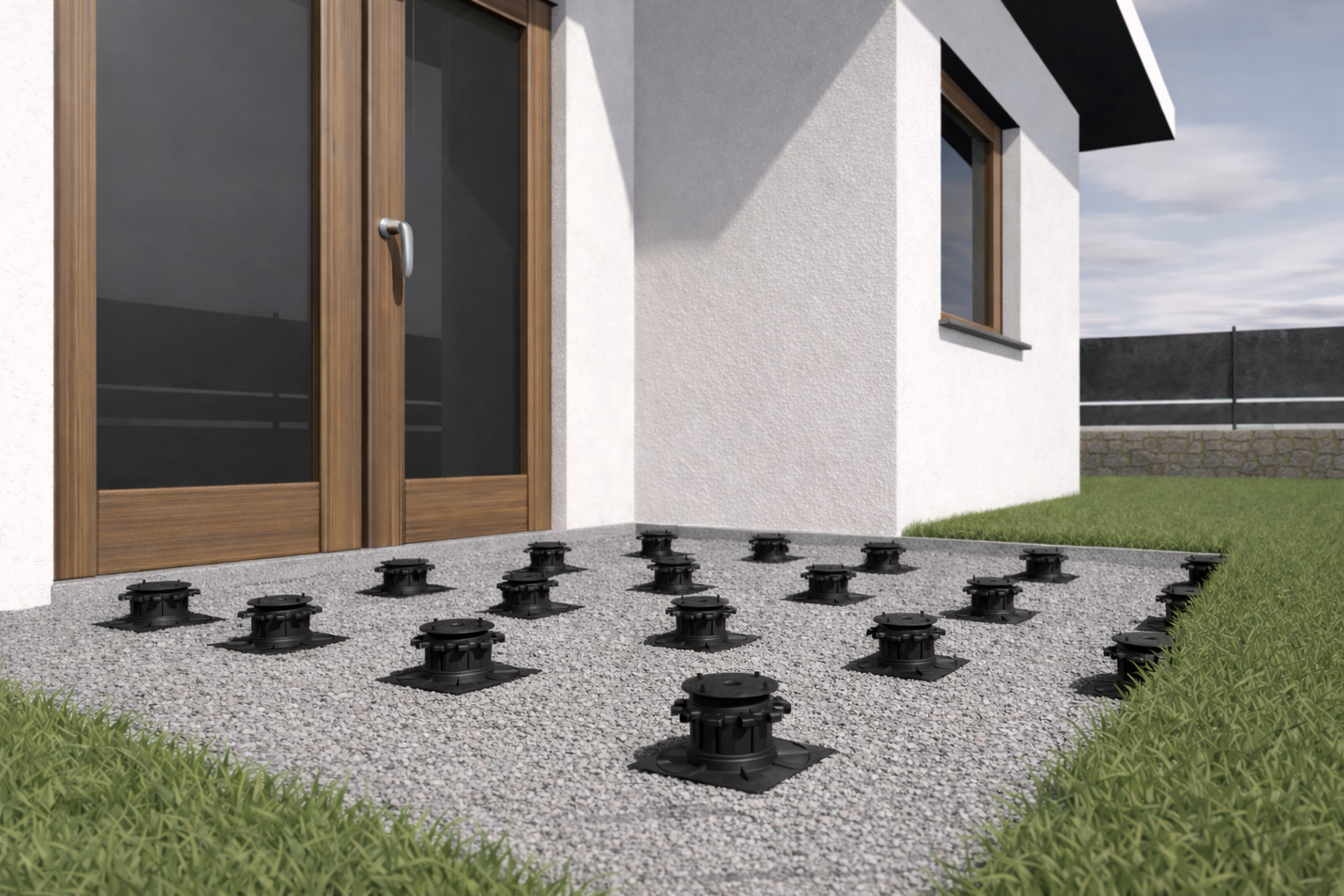

The innovative ARKIMEDE Adjustable Paving Pedestal, is one of the latest products to join our extensive range of outdoor tiling equipment. These pedestals are the ideal choice for those looking to create a perfectly level outdoor surface, such as a raised tiled area, terrace or deck space.

How do paving support pedestal work?

The polypropylene pedestals are designed to be wound up and down, which allows the installer to achieve a perfectly level inish, whilst also ensuring slabs are evenly spaced. Not only do these pedestals provide a stunning finish, but the design will also aid drainage as rainwater is able to flow under the surface thanks to the free-flowing cavity. This means there are no issues with water pooling or damp ingress, and if maintenance is ever required, they can be removed easily.

A useful installation video is available to view by clicking HERE

Product Codes: 1143/4A4M, 1143/P2S, 1143/P50



Key benefits

• The adjustable height for an individual pedestal can range from 60-115cm, with 50 and 100mm extensions available to further increase the height. Simply remove the spacer tabs to lock the extension in place, with a maximum of 5 x 100mm extensions possible on each pedestal to give a total height of 500mm.

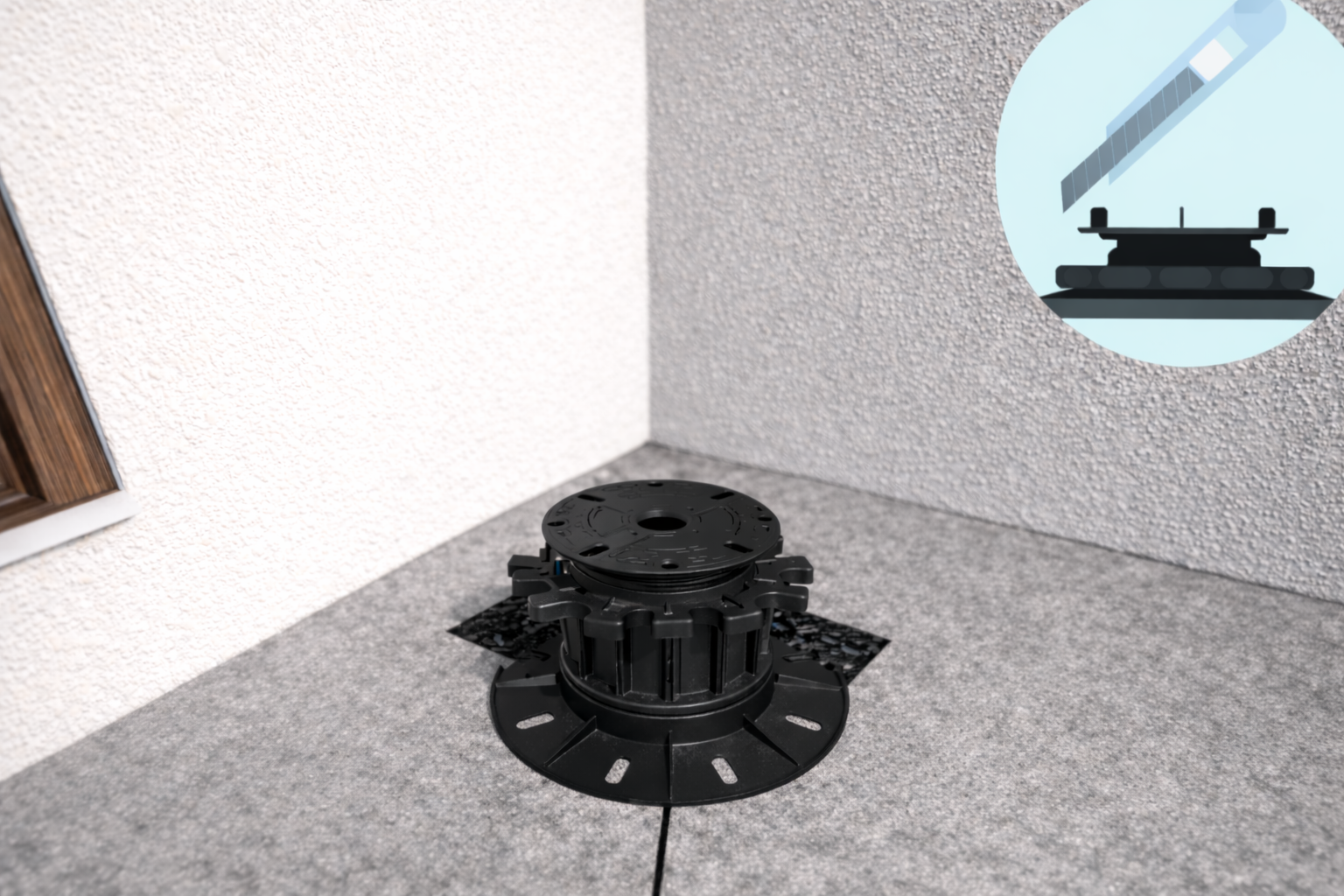

• The support base surface is 314cm2, with a recessed design that encourages the outflow of water. In addition, during installation the base can be easily cut to size to allow the pedestals to be used within corners and against walls.

• Pedestals include 4 spacer tabs which are designed to create a 4mm joint. These tabs can be removed during tiling to allow tiles to be installed against walls or around obstructions.

• Features a head diameter of 120mm and a laying surface of 113cm2.

• An anti-noise rubber top is included within each pedestal to minimise noise disruptions.

• The polypropylene design is able to hold very large weights, whilst also enduring fluctuating temperatures and changing weather.

Additional information


25mm Pedestal Extension, 50mm Pedestal Extension, Pedestal with 2mm Joint, Pedestal with 4mm Joint
